Triple Layer Forming Fabrics

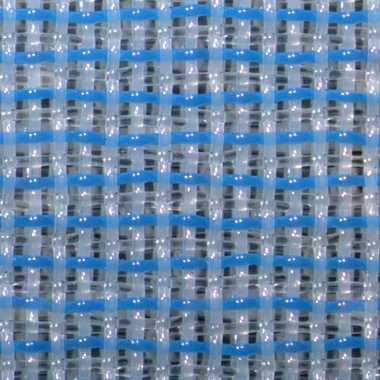

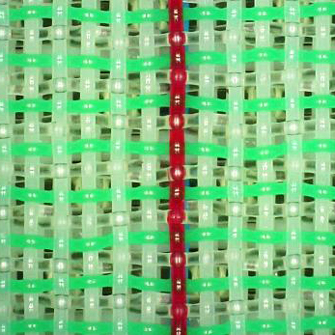

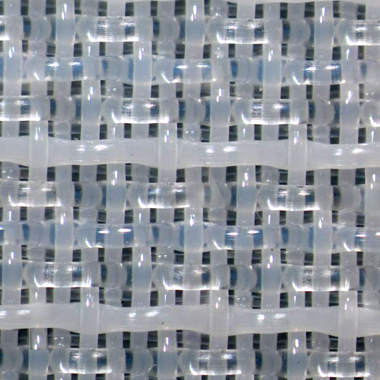

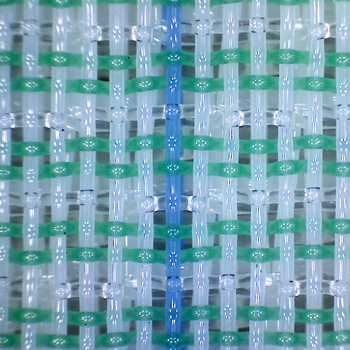

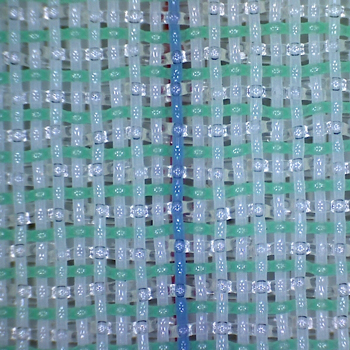

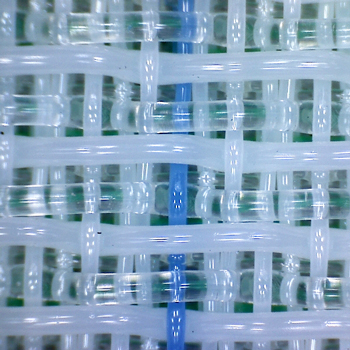

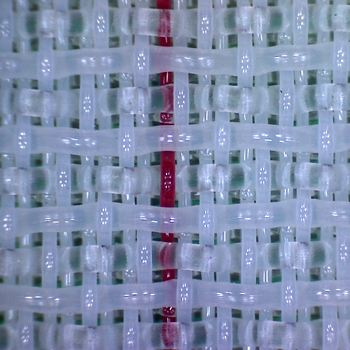

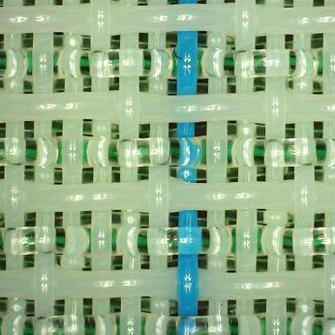

Triple layer forming fabrics have two independent single layer forming fabrics bound together by separated yarns. In the forming side, the yarns have a small diameter to increase the fiber support index. In the wear side, cross direction yarns have large diameter to improve the fabric life. The wear side is made with coarse mesh to improve stability and wear resistance. The paper side is made with very fine yarns on the surface to optimize the paper sheet forming performance.
Benefits
- Better paper sheet support and formation.
- Increased pulp fines retention.
- Decreased two sideness.
- Improved stability and wear resistance.
- Longer life time.
Technical Specification
warp diameter | weft diameter | warp mesh | weft count | fabric strength | seam strength | caliper | CFM |
0.15/0.2 mm | 0.15/0.13/0.25/0.25 mm | 65 / cm | 65 / cm | > 1000 N/cm | > 600 N/cm | 0.85 mm | 344 |
0.15/0.2 mm | 0.15/0.15/0.35/0.35 mm | 70 | 55 | 1000 | 500 | 1.03 mm | 313 |
0.15/0.2 mm | 0.15/0.15/0.4/0.4 mm | 53 | 60 | 1000 | 600 | 1.1 mm | 340 |
0.2/0.2 mm | 0.2/0.17/0.4/0.4 mm | 42 | 48 | 1100 | 700 | 1.35 mm | 450 |
0.2/0.27 mm | 0.17/0.2/0.45/0.45 mm | 40 | 54 | 1100 | 700 | 1.42 mm | 388 |
0.2/0.2 mm | 0.0.2/0.2/0.45/0.45 mm | 42 | 52 | 1100 | 700 | 1.48 mm | 469 |
